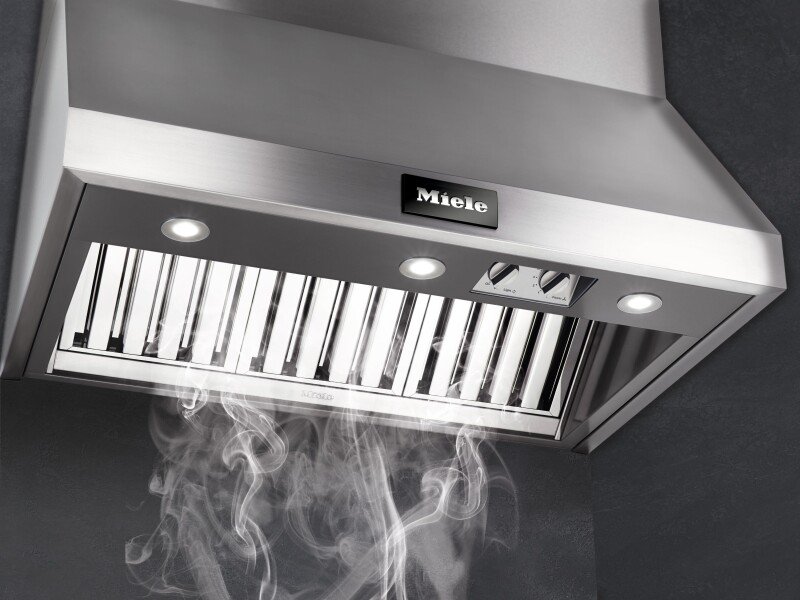

36" Pro Wall Range Hood - DAR12303SS
$2,799.00
Color : Stainless steel
$2,799.00
Key Features
Knob controls
LED ClearView lighting
Temperature sensor
Miele CleanCover
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Knob controls
Operating the blower power and LED lighting on the ventilation hood is intuitive and effortless with rotary controls.
LED ClearView lighting
Specially developed for select Miele Range Hoods, LED lighting shines a more natural light to highlight the pure color and texture of your food, but also saves energy. This long lasting LED lighting is tested to last the 20 year life cycle of your hood.
Temperature sensor
The temperature sensor is a safety device that constantly monitors the temperature when the ventilation hood is switched on. If a certain temperature is exceeded the ventilation hood automatically switches to the intensive setting. This avoids unnecessary energy consumption. The temperature sensor provides added peace of mind.
Miele CleanCover
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Specifications
General information
| Model number | DAR 1230-3 |
| Manufacturer material number | 11898170 |
| EAN number | 4002516546948 |
Design
| Wall ventilation hood | TRUE |
Required accessories
| Blower | TRUE |
| Duct cover | TRUE |
Operating modes
| Recirculated mode | Can be retrofitted |
| External operation possible | TRUE |
User convenience
| Rotary knob | TRUE |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | TRUE |
Cleaning convenience
| Easy to clean canopy interior CleanCover | TRUE |
| Dishwasher-safe grease collection channel | TRUE |
Filter system
| Number of dishwasher-safe stainless steel baffle filters | 3 |
Lighting
| Number x W | 3 x 3 W |
Fan option (buy separately)
| DRIB XL internal blower in CFM (m³(h) | 1189 |
| DRIB XXL internal blower in CFM (m³/h) | 1869 |
| DREB XL external blower in CFM (m³/h) | 1189 |
| DREB XXL external blower in CFM (m³/h) | 1869 |
Technical data
| Canopy width in in.(mm) | 36 (913) |
| Canopy width in inches | 35 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 73 (33.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | TRUE |
| Total connected load in kW | 0.809 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Plug type | NEMA plug: 5–15 |
Installation note
| Vent connection at top | TRUE |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
Standard accessories
| Non-return flap | TRUE |
Dimensions & Weight
| Width | 35.94 in. |
| Height | 24.29 in. |
| Length | 24.06 in. |
| Weight | 160.39 lbs. |
| Gross Weight | 103.62 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41.34 in. |
| Shipping Height | 27.95 in. |
| Shipping Length | 28.74 in. |
| Shipping Weight | 200.39 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 200.39 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 19.21 ft³ |
| Cubic Feet Measurement | 12.16 ft³ |
| Dimensional Weight | 151.11 lbs. |
| Total of Cubes | 12.16 ft³ |
| Total of Dimensional Weight | 151.11 lbs. |
