$17,099.00

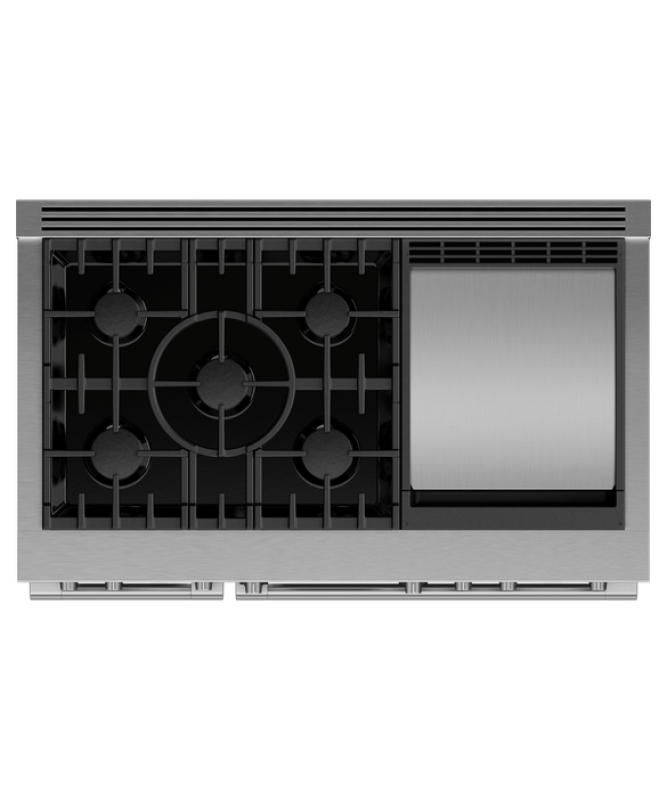

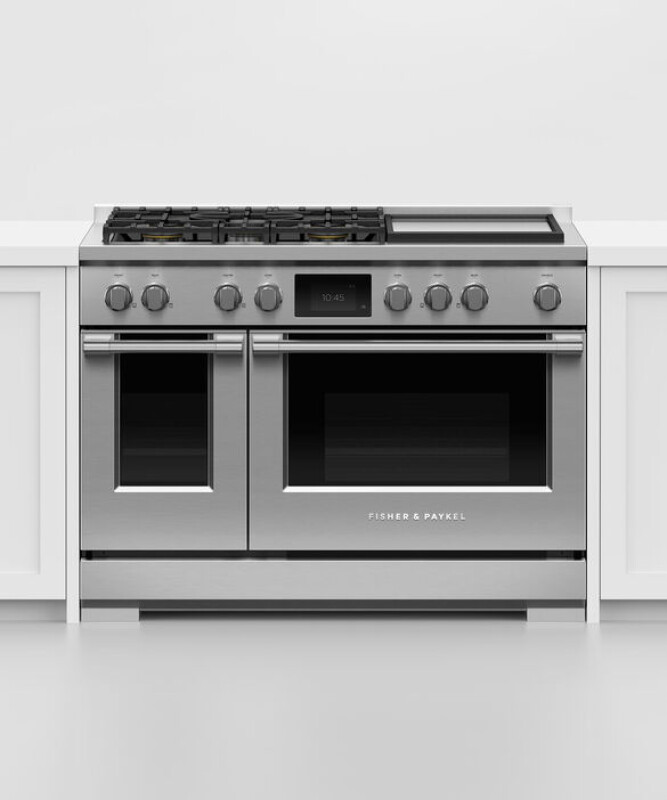

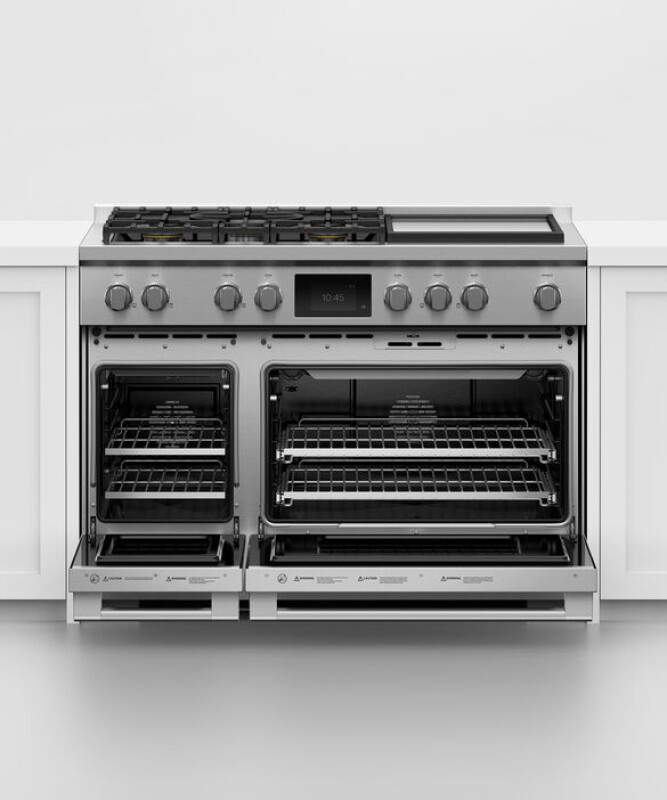

48" Series 9 Professional Dual Fuel 5 Burner with Griddle Self-Cleaning Range, Natural Gas - RDV3485GDN
48" Series 9 Professional Dual Fuel 5 Burner with Griddle Self-Cleaning Range, Natural Gas
Model: RDV3485GDN
48" Series 9 Professional Dual Fuel 5 Burner with Griddle Self-Cleaning Range, Natural Gas
Model: RDV3485GDN
$17,099.00
Color : Stainless Steel
$17,099.00
Key Features
Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
Gas cooktop with griddle and a top burner heat up to 23,500 BTU, for seriously fast boiling
6.9 cu ft total oven capacity across two oven cavities
Ensure perfect results with the food probe, included
Description
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
Gas cooktop with griddle and a top burner heat up to 23,500 BTU, for seriously fast boiling
6.9 cu ft total oven capacity across two oven cavities
Ensure perfect results with the food probe, included
Specifications
Other
| Fitting and pipe | ½ NPT, min. â…" Ø flex line |
| Supply Pressure (LPG) | 11" to 14" W.C |
| Capacity total (AHAM) | 4.8 cu ft |
| Capacity usable (AHAM) | 3.8 cu ft |
| Full extension telescopic racks | 2 |
| Shelf positions | 5 |
| Number of main oven functions | 15 |
| Main oven - Bake power | 4600W |
| Main oven - Broil power | 4000W |
| Main oven - True convection power | 2500W |
| Secondary oven - Bake power | 2450W |
| Secondary oven - Broil power | 3600W |
| Amperage | 50A |
| Supply frequency | 60Hz |
| Supply voltage | 120 - 240V |
| Simmer on all burners | 140°F |
| Vent trim included | Flat vent trim |
| Max burner power | 19,000 BTU |
| Power back left | 11,500 BTU |
| Power front left | 15,000 BTU |
| Power griddle | 24,000 BTU |
| Total cooktop power | 96,000 BTU |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
| Capacity total (AHAM) | 2.1 cu ft |
| Capacity usable (AHAM) | 1.8 cu ft |
| Number of secondary oven functions | 11 |
| Parts and labor | 2 years |
| Yes |
Accessories (included)
| Yes | |
| Adjustable feet covers | Yes |
| Branded coin end cap | Yes |
Burner ratings
| Yes | |
| Maximum burner power | 23500 BTU |
| Power back centre | 23500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 18500BTU |
| Power front right | 18500BTU |
| Power griddle | 24000BTU |
| Total cooktop power | 121500 BTU |
Capacity
| Yes | |
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Total capacity (main oven) | 4.8cu ft |
| Total capacity second oven | 2.1cu ft |
| Usable capacity (main oven) | 3.8cu ft |
Cleaning
| Yes | |
| Easy clean porcelain basepan | Yes |
| Pyrolytic self-clean | Yes |
Controls
| Yes | |
| Dial with illuminated halo | Yes |
| Dual control oven dials | Yes |
| Electric circuit | 4 wire |
| High resolution display | Yes |
| Metal illuminated dials | Yes |
| Multi-language interface | Yes |
| Precise cooking with food probe | Yes |
| Recipe and food based functions | Yes |
| Sabbath mode | Yes |
| Smart Appliance | Yes |
| Tilting touch screen interface | Yes |
| Wi-Fi connectivity | Yes |
Gas Requirements
| Yes | |
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Oven features
| Yes | |
| Auto re-ignition system | Yes |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Full extension telescopic sliding shelves | Yes |
| Titanium coated, illuminated metal dials | Yes |
Oven functions
| Yes | |
| Air fry | Yes |
| Bake | Yes |
| Classic bake | Yes |
| Clean | Yes |
| Convection bake | Yes |
| Convection broil | Yes |
| Maxi Broil | Yes |
| Number of functions | 15 |
| Pastry bake | Yes |
| Pizza bake | Yes |
| Rapid proof | Yes |
| Roast | Yes |
| Slow cook | Yes |
| True convection | Yes |
| Warm | Yes |
Oven performance
| Yes | |
| Bake power | 4600 |
| Broil | 3600W |
| Main oven - True convection power | 2500W |
Power requirements
| Yes | |
| Connection | 4-prong grounding type [NEMA 14-50 plug] |
| Power supply | 120 / 240 V, 60 Hz |
| Service | 50 A |
Rangetop features
| Yes | |
| Sealed range top | Yes |
| Vent trim included | Yes |
Recommended Back Guards Ventilation
| Yes | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Safety
| Yes | |
| ADA compliant | Yes |
Secondary oven features
| Yes | |
| 3/4 Extension racks | 2 |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Food probe | Yes |
| Internal light | Yes |
Secondary oven functions
| Yes | |
| Air fry | Yes |
| Bake | Yes |
| Classic bake | Yes |
| Convection bake | Yes |
| Convection broil | Yes |
| Maxi broil | Yes |
| Number of secondary oven functions | 11 |
| Pastry bake | Yes |
| Pizza bake | Yes |
| Rapid proof | Yes |
| Roast | Yes |
| Warm | Yes |
Dimensions & Weight
| Width | 47 in. |
| Height | 35 in. |
| Length | 29 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52 in. |
| Shipping Height | 40 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 27.61 ft³ |
| Dimensional Weight | 343.2 lbs. |
| Total of Cubes | 27.61 ft³ |
| Total of Dimensional Weight | 343.2 lbs. |
