$1,799.00
36" Hood Insert XSlim 625 CFM (Stainless Steel) - DA2390SS
$1,799.00
Color : Stainless steel
$1,799.00
Key Features
Safety turn off
Stainless-steel grease filters (10-layer)
Miele CleanCover
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Safety turn off
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

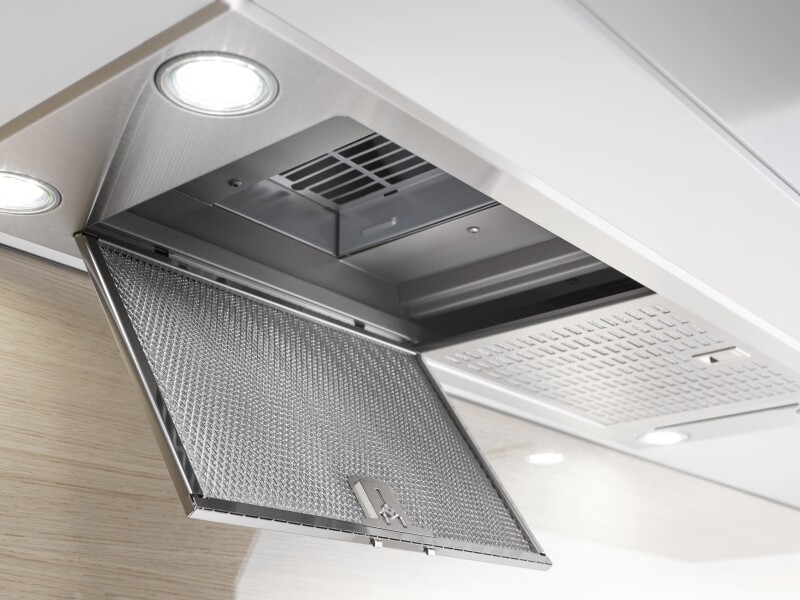

Stainless-steel grease filters (10-layer)
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Miele CleanCover
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Specifications
General information
| Model number | DA 2390 |
| Manufacturer material number | 10743660 |
| EAN number | 4002515939932 |
| Marketing class | Silver |
Design
| Insert ventilation extractor | TRUE |
| Color | Stainless steel |
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 19-P |
User convenience
| Electronic controls | TRUE |

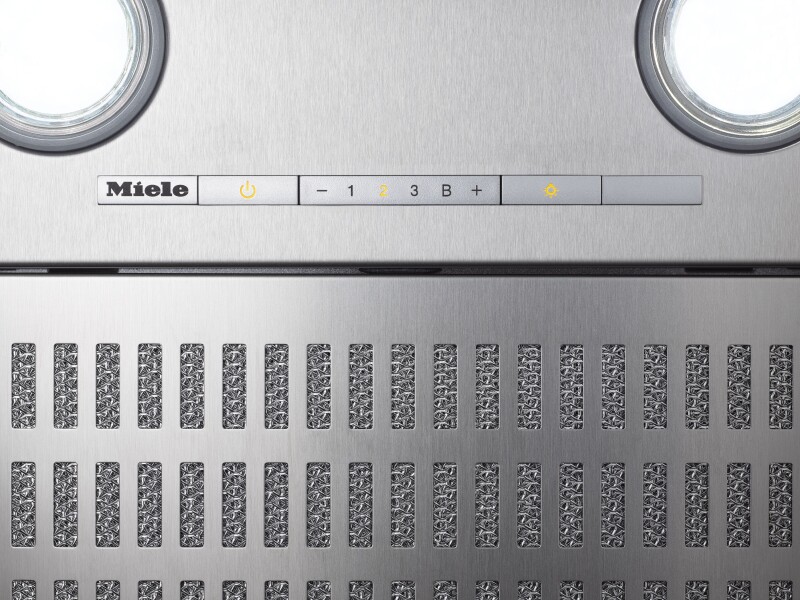

| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| CleanCover | TRUE |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | TRUE |
Filter system
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
Lighting
| Number x W | 4 x 3 W |
| Light intensity in Lx | 500 lx |
| Color temperature in K | 3000 Kelvin |
Blower
| Dual-action blower | TRUE |
Exhaust air
| Air throughput in CFM in Booster | 489 |
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 488.52 (830) |
Safety
| Safety shut-off | TRUE |
Technical data
| Canopy width in in. (mm) | 34 7/8 (884) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 3/4 (297) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 29 (13.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | TRUE |
| Plug type | NEMA plug: 5–15 |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection at top | TRUE |
| Diameter of vent connection in in. (mm) | 6 (150) |
Standard accessories
| Non-return flap | TRUE |
Dimensions & Weight
| Width | 34.8 in. |
| Height | 13.35 in. |
| Length | 11.69 in. |
| Weight | 63.18 lbs. |
| Gross Weight | 33.07 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 38.58 in. |
| Shipping Height | 16.93 in. |
| Shipping Length | 16.93 in. |
| Shipping Weight | 103.18 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 103.18 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 6.39 ft³ |
| Cubic Feet Measurement | 3.14 ft³ |
| Dimensional Weight | 39.07 lbs. |
| Total of Cubes | 3.14 ft³ |
| Total of Dimensional Weight | 39.07 lbs. |
