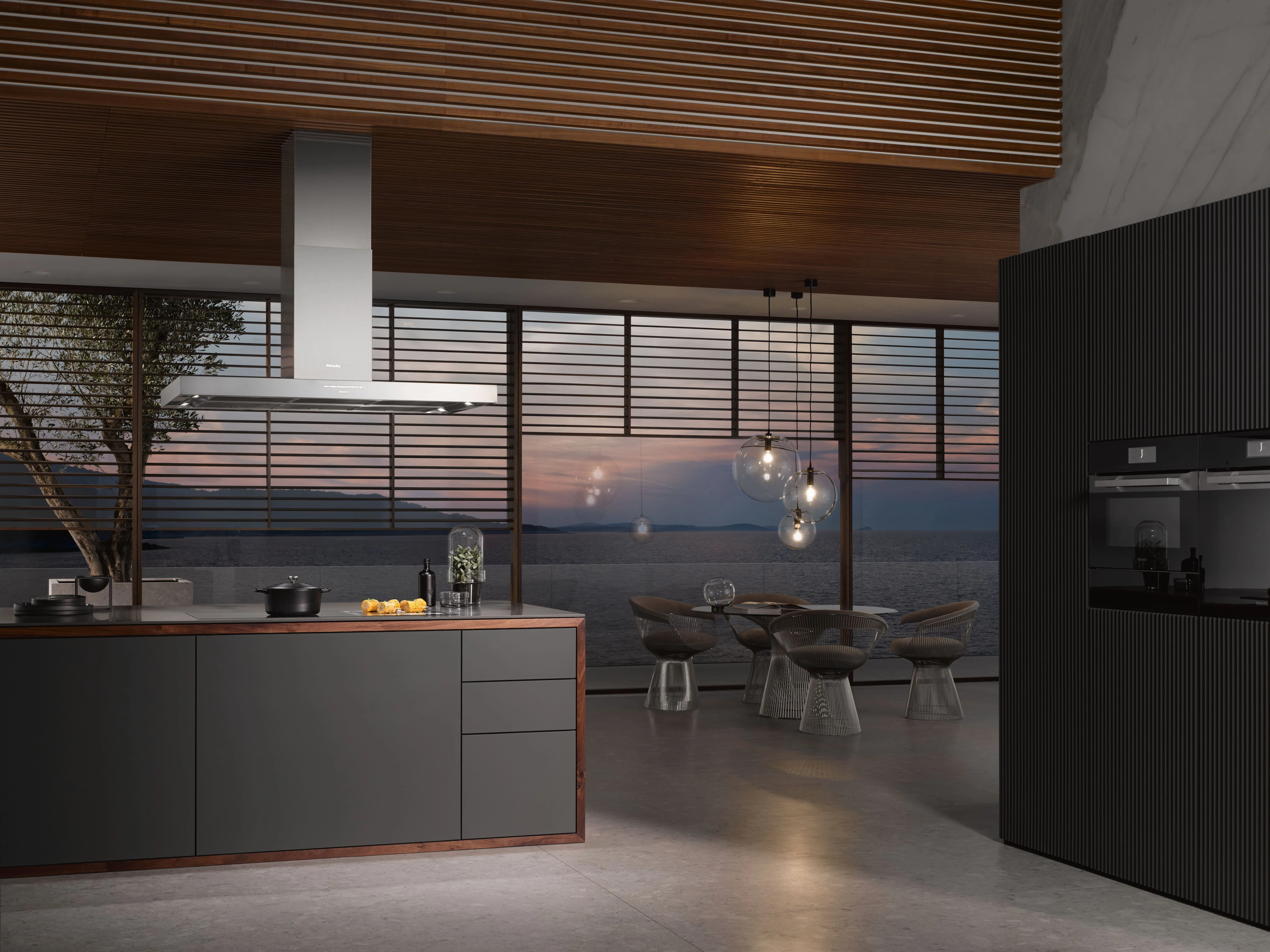

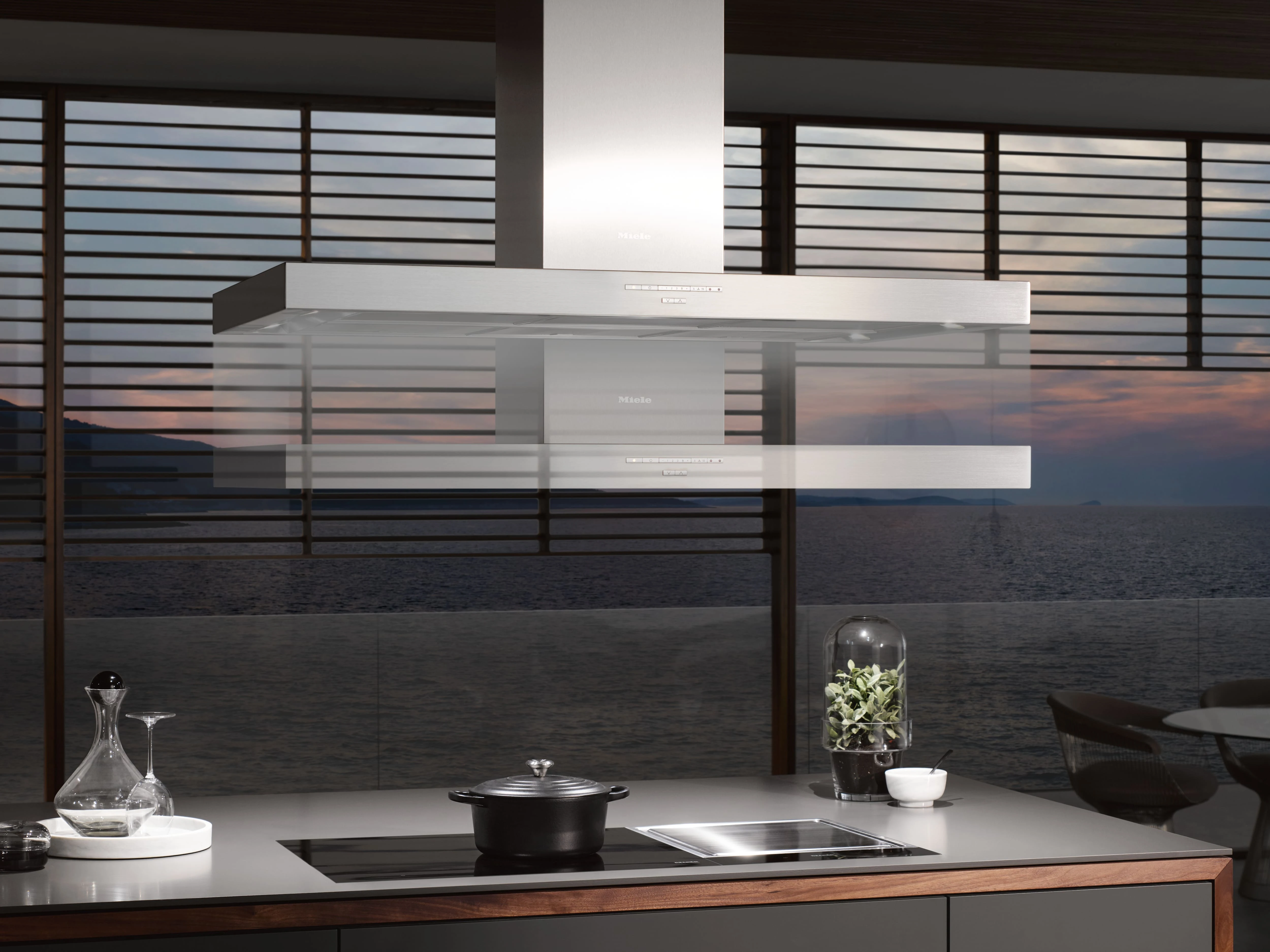

48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) - DA4248VDSS

48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel)

Model: DA4248VDSS

48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS
48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS
48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS
48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS

$5,999.00

Price Match Guarantee

Color : Clean Touch Steel

48" Puristic Varia Motorized Island Hood 625 CFM (Stainless Steel) DA4248VDSS

$5,999.00

Clean Touch Steel

Key Features

  • Con@ctivity

  • Delayed shutdown

  • filter saturation indicator

  • Motorized canopy

  • Safety turn off

  • Stainless-steel grease filters (10-layer)

  • Silence

  • Miele CleanCover

Available from DreamHome Appliance Group Inc, serving customers throughout .

Features
Specifications

Features

Con@ctivity

Thanks to the automatic Con@ctivity function, the ventilation hood can communicate with the cooktop below: The settings selected on the cooktop are transmitted to the controls on the hood. Your Miele Ventilation Hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the ventilation hood and cooktop via WiFi.

Delayed shutdown

The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.

filter saturation indicator

If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.

Motorized canopy

Do you have special requirements? If so, you will be impressed by our motorized ventilation hoods. The canopies of our exclusive downdraft ventilation hoods automatically move into the perfect position for operation and back into the park position when switched off. The height of the motorized island hood can be adjusted. For the best in ergonomics, highly efficient extraction, and perfect integration into the kitchen.

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

Silence

Efficient and very quiet: The motor, chimney and ventilation hood canopy are equipped with special insulators for effective sound-proofing. This allows normal conversations even with high air throughput.

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.

Specifications

General information

Model numberDA 4248 V D Puristic Varia
Manufacturer material number10877250
EAN number4002515990162
Marketing classPlatinum

Design

Island ventilation hoodTRUE
ColorStainless steel

Operating modes

Recirculated modeExhaust air

User convenience

Miele@homeTRUE
Con@ctivityTRUE
Electronic controlsTRUE
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
Delayed shutdown for 5 or 15 minutesTRUE
Grease filter saturation indicatorTRUE
Acoustic packageTRUE
Hood in MotionTRUE
CleanCoverTRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCoverTRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)6

Lighting

Number x W4 x 3 W
Light intensity in Lx600 lx
Color temperature in K3500 Kelvin
Light dimmer functionTRUE

Blower

Dual-action blowerTRUE

Exhaust air

Air throughput in CFM in Booster507
Air throughput with Booster level 1 (m³/h) according to EN 61591506.18 (860)

Safety

Safety shut-offTRUE

Technical data

Overall hood height for vented mode and external in inches (mm)29 3/4 (755)–41 1/4 (1045)
Overall min. height for vented and external in in. (mm)29 3/4 (755)
Overall max. height for vented and external in in. (mm)41 1/4 (1045)
Canopy width in in. (mm)47 1/4 (1198)
Canopy height in in. (mm)2 7/8 (70)
Depth of hood canopy in in. (mm)27 1/2 (698)
Minimum height above electric cooktops in mm24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)109 (49.0)
Plug typeWithout plug
Hard-wiredTRUE
Total connected load in kW0.512
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1

Installation note

Vent connection at topTRUE
Diameter of vent connection in in. (mm)6 (150)
Telescopic chimneyTRUE

Standard accessories

Non-return flapTRUE

Dimensions & Weight

Width47.17 in.
Height-
Length27.48 in.
Weight238.16 lbs.
Gross Weight152.12 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width53.74 in.
Shipping Height48.03 in.
Shipping Length34.06 in.
Shipping Weight278.15999999999997 lbs.
SourceManufacturer
Total of Shipping Weight278.16 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement50.85 ft³
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
Cubic Feet Measurement-
