$5,199.00

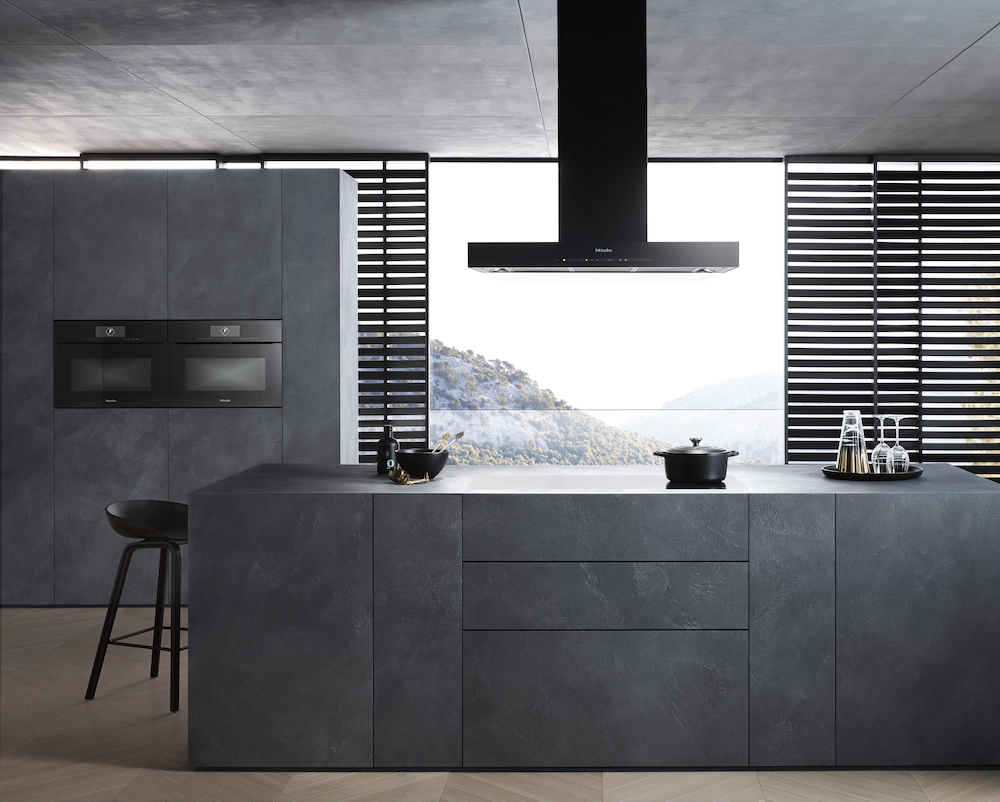

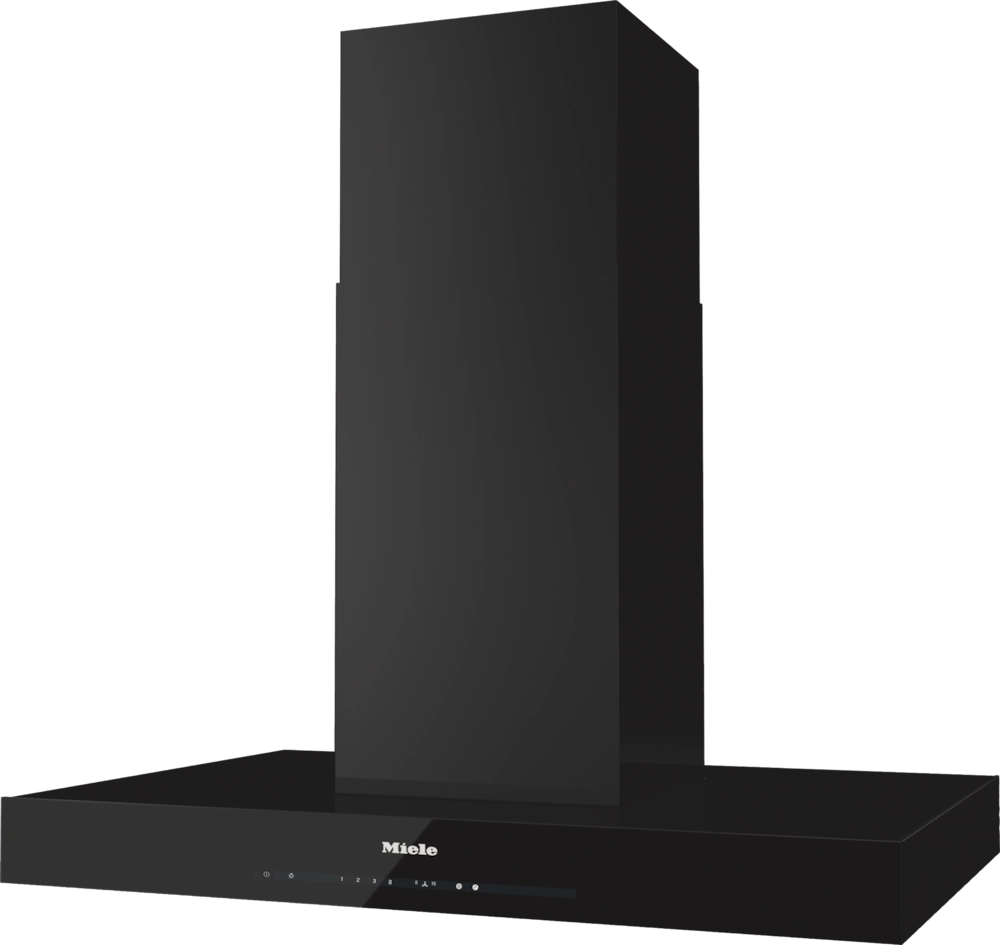

Island décor hood - DA6698DPURISTICVERSION6000
$5,199.00
Color : Obsidian black
$5,199.00
Key Features
Countdown time conveniently in view
Easy to use and effective against grease
Convenience and safety in detail
Always on the safe side
Automatic blower run-on
Performance and convenience as standard
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Performance and convenience as standard
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Specifications
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUI 32 |
| OdorFree charcoal filter (order separately) | DKF 12-P |
Design
| Island ventilation hood | Yes |
| Color | Obsidian black |
User convenience
| Electronic controls | Yes |
| Touch controls | Yes |
| Power levels (number excl. Intensive) | 3 |
| Miele@home | Yes |
| Programmable Intensive switch-off | Yes |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Programmable grease filter saturation indicator | Yes |
| Programmable charcoal filter saturation indicator | Yes |
| Acoustic package | Yes |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | Yes |
Lighting
| LED ClearView lighting | Yes |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 820 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 3 |
Blower
| Dual-action blower | Yes |
| AC motor | Yes |
Exhaust air
| Air throughput | Values upon request |
Safety
| Safety shut-off | Yes |
| Single-ply safety glass (ESG) | Yes |
Installation note
| Vent connection at top | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | Yes |
Standard accessories
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
Other
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Hard-wired | Yes |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Dimensions & Weight
| Width | - |
| Height | 1.67 in. |
| Length | - |
| Weight | 171.6 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 6.67 in. |
| Shipping Length | - |
| Shipping Weight | 211.6 lbs. |
| Total of Shipping Weight | 211.6 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
