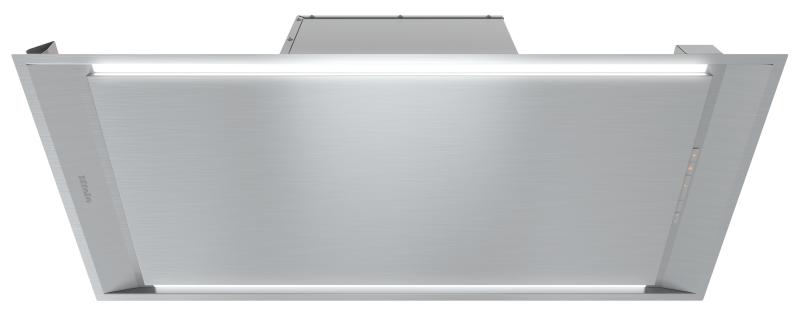

Ceiling Extractor - DAC2247SS
$2,999.00
Color : Clean Touch Steel
$2,999.00
Key Features
Delayed shutdown
filter saturation indicator
Economy-Motor
Safety turn off
Stainless-steel grease filters (10-layer)
Miele CleanCover
Edge vented
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Delayed shutdown
The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
filter saturation indicator
If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Economy-Motor
The heart and soul of every ventilation hood is the motor. Some Miele ventilation hoods feature ECO motors which work up to 50% more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele ventilation hoods.
Safety turn off
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Stainless-steel grease filters (10-layer)
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Miele CleanCover
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Edge vented
In ventilation hoods with edge extraction panels, the commercial-looking metal grease filters are hidden behind a decorative cover. The cooking vapors are drawn in at the outer edges.
Specifications
General information
| Model number | DAC 2247 Stella |
| Manufacturer material number | 12565890 |
| EAN number | 4002516805946 |
| Marketing class | Gold |
Design
| Ceiling fan | TRUE |
| Color | Stainless steel |
| Edge extraction | TRUE |
Operating modes
| Recirculated mode | Can be retrofitted |
| OdorFree charcoal filter (order separately) | DKF 40-R |
User convenience
| Miele@home | TRUE |

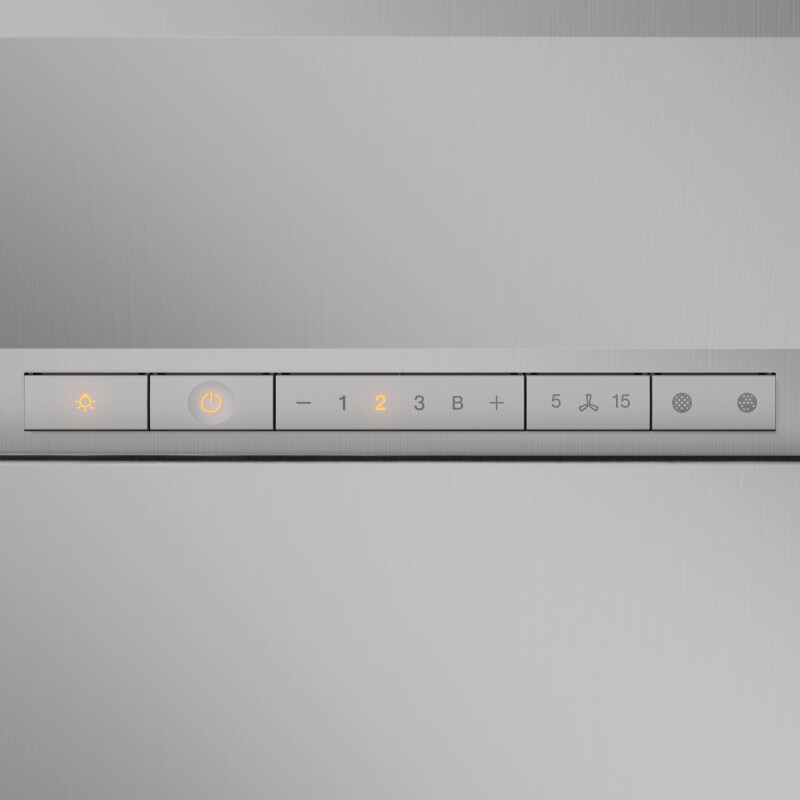

| Electronic controls | TRUE |
| EasySwitch | TRUE |
| Operation | EasySwitch |
| ON/OFF switch | TRUE |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | TRUE |
| Grease filter saturation indicator | TRUE |
| Active charcoal filter saturation indicator | TRUE |
| CleanCover | TRUE |
Efficiency and sustainability
| ECO motor (DC motor) | TRUE |
| PowerManagement system | TRUE |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | TRUE |
Filter system
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 4 |
Lighting
| Number x W | 2 x 7,2 W |
| Light intensity in Lx | 450 lx |
| Color temperature in K | 3500 Kelvin |
Blower
| Dual-action blower | TRUE |
| DC motor | TRUE |
Exhaust air
| Air throughput in CFM in Booster | 474 |
| Air throughput with Booster level 1 (m³/h) according to EN 61591 | 473.81 (805) |
Safety
| Safety shut-off | TRUE |
Technical data
| Overall hood height for vented mode and external in inches (mm) | 11 3/4 (296) |
| Overall height for recirculation mode ventilation hoods in mm | 11 3/4 (296) |
| Overall min. height for vented and external in in. (mm) | 11 3/4 (296) |
| Overall max. height for vented and external in in. (mm) | 11 3/4 (296) |
| Overall min. height for recirculation in in. (mm) | 11 3/4 (296) |
| Overall max. height for recirculation in in. (mm) | 11 3/4 (296) |
| Canopy width in in. (mm) | 45 7/8 (1165) |
| Canopy height in in. (mm) | 11 3/4 (296) |
| Depth of hood canopy in in. (mm) | 19 3/4 (500) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 50 (22.3) |
| Length of electrical wire in ft. (m) | 2 (0.7) |
| Standard plug fitted | TRUE |
| Plug type | NEMA plug: 5–15 |
| Total connected load in kW | 0.194 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Installation note
| Vent connection on side | TRUE |
| Diameter of vent connection in in. (mm) | 6 (150) |
Standard accessories
| Non-return flap | TRUE |
| Reducer from 150 to 125 mm Ø | TRUE |
| Remote control | TRUE |
Dimensions & Weight
| Width | 45.87 in. |
| Height | 11.65 in. |
| Length | 19.69 in. |
| Weight | 108.29 lbs. |
| Gross Weight | 80.87 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.5 in. |
| Shipping Height | 22.56 in. |
| Shipping Length | 57.09 in. |
| Shipping Weight | 148.29000000000002 lbs. |
| Source | Manufacturer |
| Total of Shipping Weight | 148.29 lbs. |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.48 ft³ |
| Cubic Feet Measurement | 6.09 ft³ |
| Dimensional Weight | 75.70 lbs. |
| Total of Cubes | 6.09 ft³ |
| Total of Dimensional Weight | 75.70 lbs. |
