$1,699.00

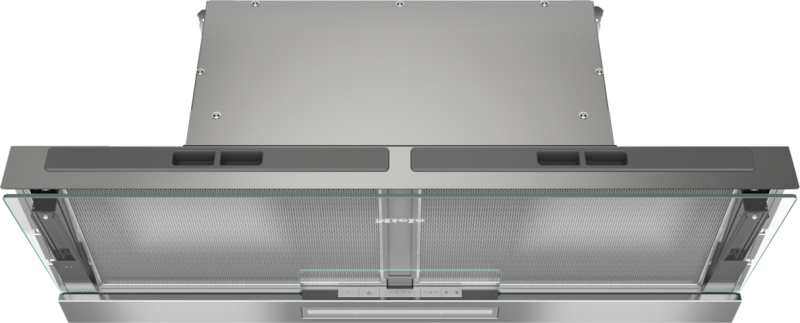

Built‑in ventilation hood for installation in narrow upper cabinets with EasySwitch controls - DAS4940
Built‑in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Model: DAS4940
Built‑in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Model: DAS4940
$1,699.00
Color : Transp. glass
$1,699.00
Key Features
Automatic blower run-on
Countdown time conveniently in view
Always on the safe side
Easy to use and effective against grease
Convenience and safety in detail
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Specifications
Operating modes
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF 31-PDKF 31-R |
Design
| Built-in ventilation hood | Yes |
| Color | Transp. glass |
User convenience
| Miele@home | Yes |
| Con@ctivity 3.0 | |
| Electronic controls | Yes |
| EasySwitch | Yes |
| Programmable Intensive switch-off | Yes |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Programmable grease filter saturation indicator | Yes |
| Programmable charcoal filter saturation indicator | Yes |
Cleaning convenience
| Easy-to-clean CleanCover hood liner | Yes |
Filter system
| Number of dishwasher-safe stainless-steel grease filters | 2 |
Lighting
| LED ClearView lighting | Yes |
| Number x W | 1 x 3 W |
| Light intensity in Lx | 285 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
Blower
| Dual-action blower | Yes |
| AC motor | Yes |
Safety
| Safety shut-off | Yes |
| Single-ply safety glass (ESG) | Yes |
Installation note
| Vent connection at top | Yes |
| Vent connection at top and rear | Yes |
| Installation template | Yes |
Standard accessories
| Non-return flap | Yes |
Other
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.35 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 83.6 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 123.6 lbs. |
| Total of Shipping Weight | 123.6 lbs. |
| Source | Manufacturer |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
