Integrated dishwasher, ADA compliant, - PFD102I120V208240V

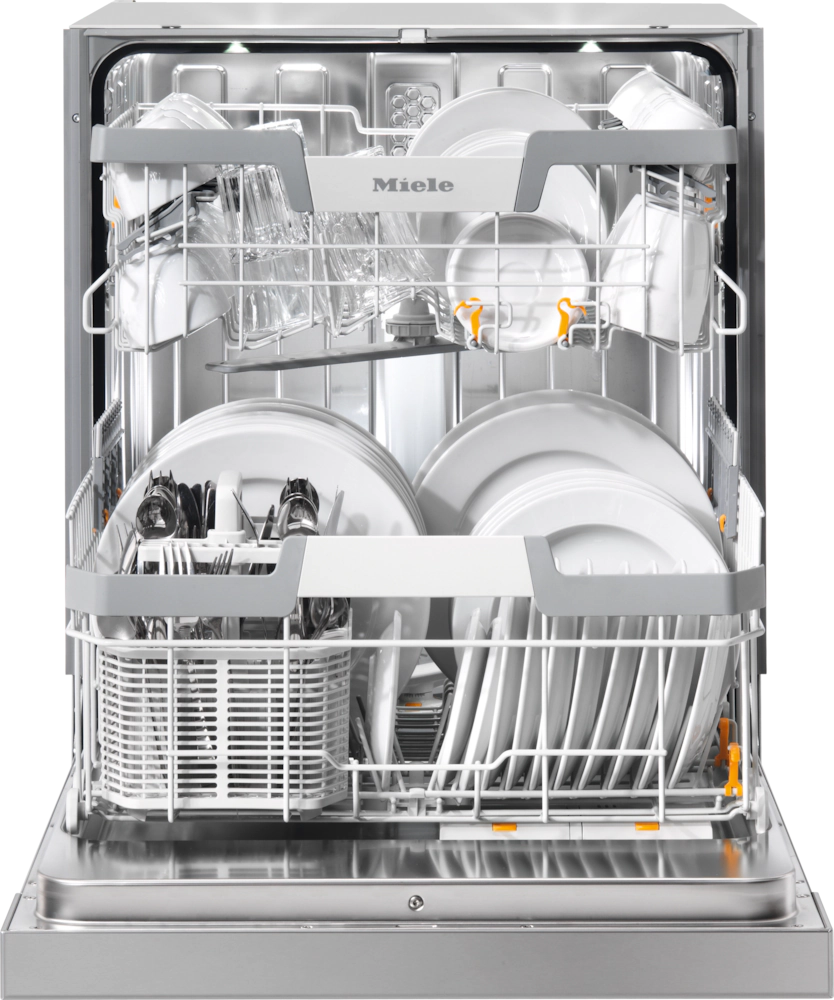

Integrated dishwasher, ADA compliant,

Model: PFD102I120V208240V

Integrated dishwasher, ADA compliant, PFD102I120V208240VIntegrated dishwasher, ADA compliant, PFD102I120V208240VIntegrated dishwasher, ADA compliant, PFD102I120V208240VIntegrated dishwasher, ADA compliant, PFD102I120V208240V
Integrated dishwasher, ADA compliant, PFD102I120V208240V
Integrated dishwasher, ADA compliant, PFD102I120V208240V
Integrated dishwasher, ADA compliant, PFD102I120V208240V
Integrated dishwasher, ADA compliant, PFD102I120V208240V

Color : Without front

Integrated dishwasher, ADA compliant, PFD102I120V208240V
Without front

Key Features

  • An eye on the time

  • Brilliant visibility

  • Your dishwasher “speaks" multiple languages

  • Maximum hygiene assurance

  • Effective against bacteria – scientifically proven

  • Effective against viruses – scientifically proven

  • Highly versatile

  • Versatile

Read More

Available from DreamHome Appliance Group Inc, serving customers throughout .

Features
Specifications

Features

An eye on the time

For maximum flexibility, a delay start time of up to 24 hours can be selected.

Brilliant visibility

Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.

Your dishwasher “speaks" multiple languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.

Maximum hygiene assurance

Constantly high cleaning performance and filtration thanks to repeated water changes.

Effective against bacteria – scientifically proven

Our dishwashers in the PFD 10x series remove 99.999%* of most bacteria.

Effective against viruses – scientifically proven

Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses).

Highly versatile

Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.

Versatile

The height of the upper basket can be adjusted to suit the items being cleaned.

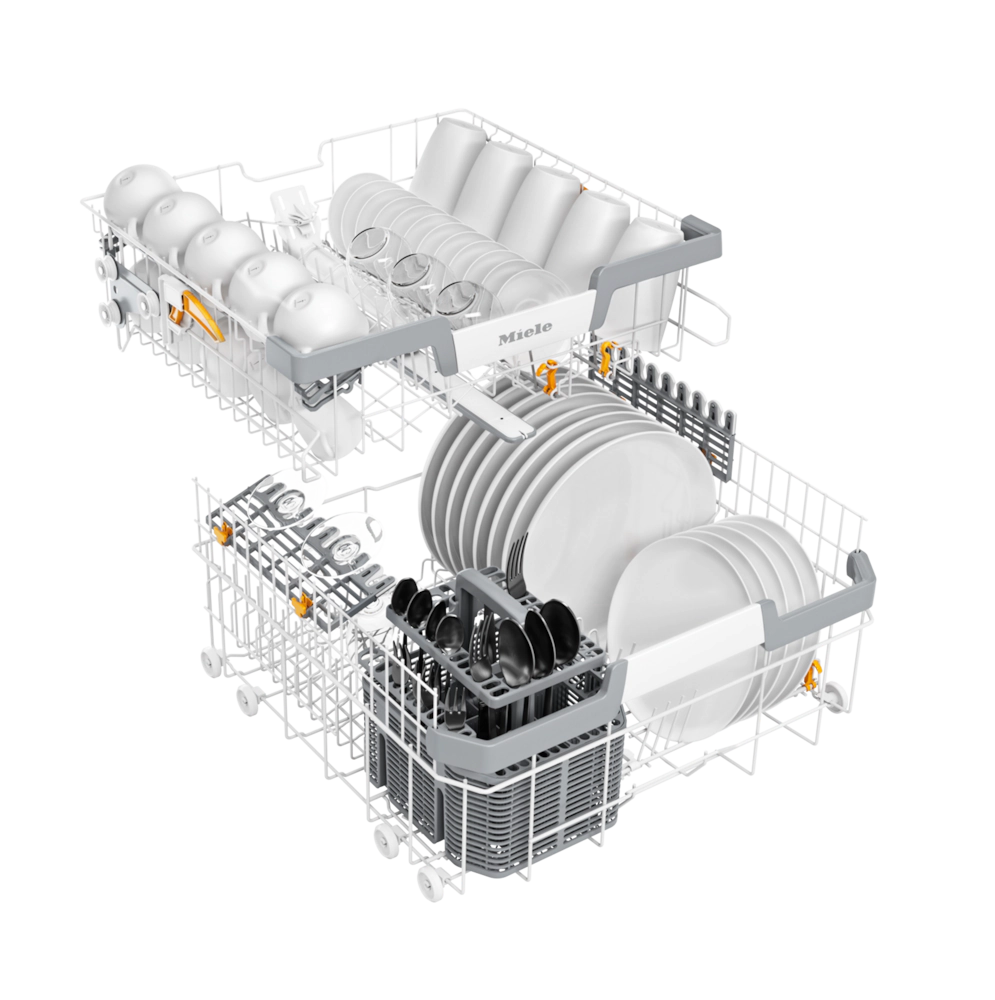

Intelligent basket design for all types of dishware

Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.

Economical

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.

Ensures the optimum water hardness level

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.

Consumption always visible

Economical: when a program is selected, estimated water consumption values are displayed.

Protects your wallet and the environment

Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.

Large wash cabinet

High capacity: The most diverse items can be arranged safely on two wash levels.

Save money intelligently

Practical: this function sets the appliance to work automatically when electricity is at its cheapest.

Professional and effective

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.

Full-size power

A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.

A strong combination

For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.

Water protection guarantee

Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.

Long service life

Durability: Miele Professional dishwashers are tested for a long service life.

Enhanced performance for large amounts of dishware

Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.

For dry dishware in next to no time

Completely dry: The dishwasher door opens automatically at the end of the program.

Gentle cleaning for delicate glassware

Gentle and delicate: Brilliant GlassCare cleans your glassware with care.

Machine data can be accessed at all times

All terminal devices can access machine data at all times thanks to networking with Miele MOVE.

Dishwashing professionals for daily large loads of dishes

These dishwashers are ideally suited for all areas which deal with large amounts of dishware.

Convenience & efficiency in demanding applications

Fully informed with a high-performance network connection.

Specifications

Construction type and design

ModelIntegrated dishwasher
RangeProfiLine
Wash systemFresh water front loader
Number of levels2
Control panel colorClean Touch Steel
Minimum front panel weight in lbs4
Maximum front panel weight in lbs11
FrontWithout front
Side wallsGalvanised

Application

Suitable for retirement and care homesYes
Suitable for Bed & BreakfastYes
Suitable for child care facilitiesYes
Suitable for universities and schoolsYes
Suitable for officesYes
Suitable for domestic useYes
Suitable for small businessesYes
Suitable for sports clubsYes

Performance data

Tested virucidal efficacyYes
Certified hygieneYes
Circulation pump, Qmax in gal/min (l/min)19.8 (75)
Shortest program duration in min.24
Maximum final rinse temperature in °F (°C)180 (82)
Cleaning performance, place settings/cycle13
Service life in wash cycles12500

Miele MOVE

Network-enabled with Miele MOVEYes

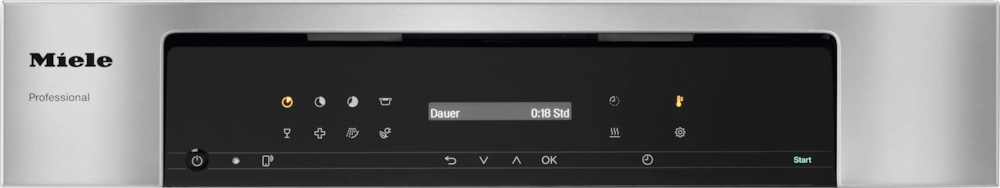

Control

Control systemElectronic controls
Program selectionProgram selectors
Max. delay start in h24
Countdown indicatorYes
Programs [quantity]8
Program sequence indicatorYes
Choice of display languageYes
Check filter indicatorYes

Standard electrical connection

Electrical connection2N AC 120/208-240V, 60HZ
Heater rating in kW3.50-3.80
Total connected load in kW3.70-4
Fuse rating in A30
Length of power cord in ft (m)5 (1.70)
NEMA plug: 14-30Yes

Possible voltage variant 1

Electrical connectionAC 120V 60HZ
Heater rating in kW1.30
Total connected load in kW1.40
Fuse rating in A15

Water connection/drainage

Cold or hot water [number]1
Required flow pressure in bar1-10
Drain hose [DN]22
Maximum delivery head for drain pump in inches (cm)39 3/8 (100)
Integrated water softenerYes
Maximum water hardness in gpg (mmol/l)6.5 (6.50)
Water protection systemWaterproof system
Length of water inlet hose in inches (cm)59 1/8 (150)
Length of water drain hose in inches (cm)59 1/8 (150)

Emission values

Emission sound pressure level in workplace (LpA)35 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW48

Programs

UniversalYes
ShortYes
SaniWashYes
GlassesYes
PlasticYes
EnergySave/EconomyYes
IntensiveYes
Cold/Pre-washYes

Baskets

ExtraComfort P basketsYes
Flexible FlexLine basket designYes
FlexCare glass holder [number]2
FlexCare cup rack [number]1
Height-adjustable upper basketYes
Cutlery basketYes

Features

Commercial-grade electrical connectionYes
DryingAutoOpen assisted drying Additional drying Active condensation drying
1 Combi dispenser/door for powder and liquid mediaYes
Wash cabinet made from high-quality stainless steelYes
LED LightingYes
EcoFeedbackYes
Brilliant GlassCareYes
Child lockYes
Adjustable final rinse temperatureYes
Optical interfaceYes
SmartStartYes
FlexiTimer with EcoStartYes
WiFi moduleYes

Standards, test certificates, and symbols

CEYes
Complies with Machinery Directive 2006/42/ECYes
VDEYes
EMC radio suppressedYes
DIN EN 17735Yes
EN 1717Yes
ULYes

Other

Maximum floor load in N/m²1000

Dimensions & Weight

Width-
Height37.81 in.
Length-
Weight109 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height42.81 in.
Shipping Length-
Shipping Weight114 lbs.
Total of Shipping Weight114 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
