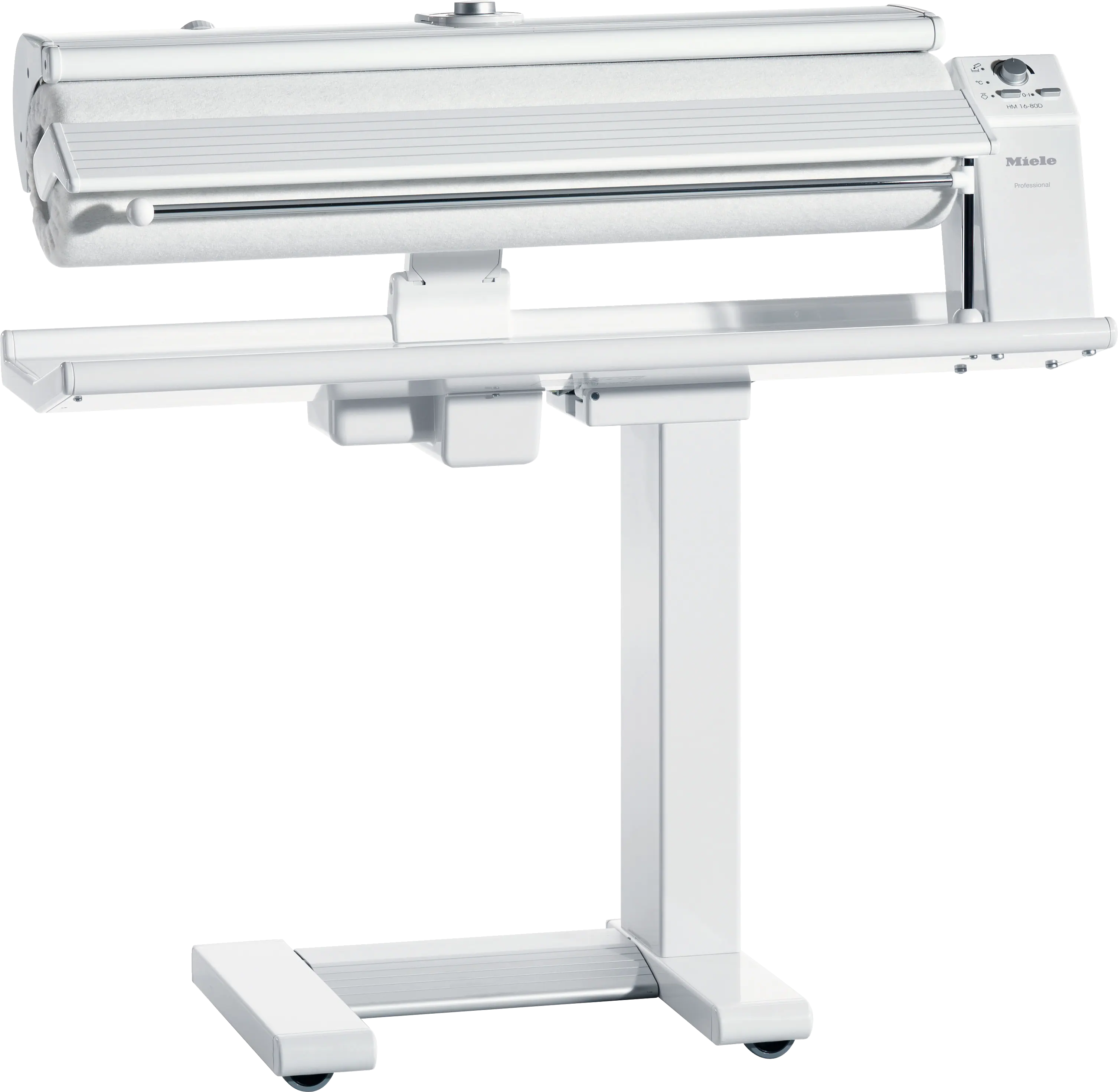

Rotary iron, electric - HM1680DEL
Key Features
Finger guard
Free, unsupported roller end
Convenient foot switch
Convenient airing bar
Variable roller speed
Feed-in and return at the front
Easy feeding in of laundry
Convenient return feed
Available from DreamHome Appliance Group Inc, serving customers throughout .
Features
Finger guard
A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry.
Free, unsupported roller end
The free roller end simplifies ironing of skirts, shirts and blouses.
Convenient foot switch
The roller is operated via a foot switch. Both hands are free to arrange items.
Convenient airing bar
The fold-out airing bar allows crease-free cooling and airing of ironed laundry.
Variable roller speed
Different ironing speeds are required depending on the type of laundry and the residual moisture level. This is why you can adjust the roller speed on Miele Professional ironers in small increments. And therefore the speed at which different operators work can be catered for.
Feed-in and return at the front
When in use, the ironer requires only a minimum amount of space as it can be installed against a wall.
Easy feeding in of laundry
The feed-in board makes it easy to feed the laundry in accurately.
Convenient return feed
The ironed laundry is automatically returned to the input side.
Low consumption values
Cost-cutting the environmental way: Miele Professional laundry machines excel in terms of extremely low consumption values and are acclaimed for maximum efficiency. The aim at the product design stage is to achieve perfect results by using recyclable materials and no more water, energy, and cleaning agents than absolutely necessary.
Steam function
The steam function adds moisture to dry laundry. The "dual-tank technology" enables steam to be ready quickly and distributed evenly over the entire ironing surface. Up to 40 minutes of steam are available per tank filling - an LED signals when tap water must be added.
Perfect laundry finish
Uniform pressure over the entire working width guarantees a perfect laundry finish.
Quick-heating aluminum heater plate
The quick-heating aluminum heater plate ensures the ironer is ready to operate in the shortest time possible.
Temperature selection to suit textiles
The temperature can be set according to the type of fabric, residual moisture level and ironing finish required.
Durable roller cover
The extremely durable ironer covers are particularly long-lasting and heat-resistant.
Space-saving storage
When the ironer is not in use, a convenient folding mechanism allows space-saving storage. When folded, the appliance only needs 0.2 sq.ft. storage space.
Specifications
Construction type and design
| Design | Infeed and outfeed of laundry at the front |
| Linie | Professional |
| Outer casing | Lotus white |
| Drum diameter in in.(mm) | 6 5/16 (160) |
| Working width in in.(mm) | 32 11/16 (830) |
| Heater plate material | Aluminium |
| Padding | Polyester needle-felt cloth |
| Ironer cover | ARAMID needle-felt cloth |
| Can be set up against a wall | TRUE |
Performance data
| Tested operating hours | 2500 |
| Max. ironing performance at 20 % residual moisture in lb/h (kg/h) | 28.6 (13.0) |
Control
| Control system | Selector dial |
| Touch display (optional) | Drehwahlschalter |
| Minimum ironer speed, can be set in ft/min | 2 |
| Adjustable temperature | In temperature stages |
| Maximum ironer speed, can be set in ft/min | 4.5 |
Standard electrical connection
| Type of heating | Electric |
| Electrical connection | 2AC 208-240V 50-60HZ |
| Boiler heater rating in kW | 0.85 |
| Fuse rating in A | 20 |
| Electric heater rating in kW | 2.800-3.700 |
| Total connected load in kW | 2.900-3.800 |
| NEMA plug: 6-20 | TRUE |
Dimensions and weight
| External dimensions, height in mm | 37 13/16 (959) |
| External dimensions, width in mm | 38 13/16 (985) |
| External dimensions, depth in mm | 15 (380) |
| External dimensions, gross width in inches | 44 1/8 (1120) |
| External dimensions, gross depth in inches | 17 3/4 (450) |
| Net weight in kg | 86 (39) |
| Gross weight in lbs. | 100 (45) |
| Maximum floor load in N | 382 |
Other
| Maximum floor load in N/m² | 382 |
Dimensions & Weight
| Width | - |
| Height | 22.5 in. |
| Length | - |
| Weight | 100 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 27.5 in. |
| Shipping Length | - |
| Shipping Weight | 105 lbs. |
| Total of Shipping Weight | 105 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Application
| Suitable for the hotel and catering industry | TRUE |
| Suitable for retirement and care homes | TRUE |
| Suitable for residential homes and apartments | TRUE |
| Suitable for commercial laundries | TRUE |
| Suitable for off-shore use | TRUE |
| Suitable for Marine use | TRUE |
| Suitable for camp sites | TRUE |
| Suitable for domestic use | TRUE |
Features
| Steam function | TRUE |
| Free, unsupported roller end | TRUE |
| Fold-away function | TRUE |
| Automatic finger guard/finger guard | TRUE |
| Foot switch | TRUE |
| Airing bar | TRUE |
| Feed-in board | TRUE |
| Laundry return feed | TRUE |
| Appliance-independent accessories | TRUE |
Standards, test certificates, and symbols
| CSA-C-US | TRUE |
| Complies with Machinery Directive 2006/42/EC | TRUE |
